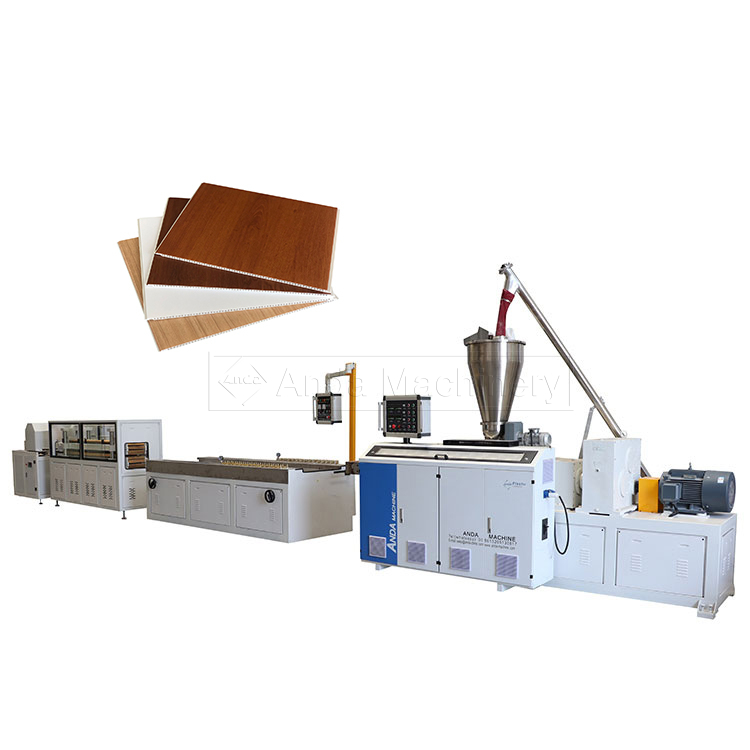

Complete Pvc Ceiling Wall Panel Making Machine Production Line

UPVC ceiling panel production line  is used to produce PVC ceiling tiles with 595x595, 600×600 , 603x603. The surface of PVC ceiling tile can be treated by to hot stamping for different color or patterns to fit various decoration style.
Availability:
Quantity:
Inquire Add to Basket

  • China

  • JINSE

Main Features of Pvc Ceiling Wall Panel Making Machine:


1.High speed, double output than common PVC wall panel production line, greatly decrease the labour cost and electricity cost and manage cost.


2.Extruder adopts PVC ceiling dedicated screw, make sure best plasticizing effect


3.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed


4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level


5.The caco3 filler can up to 300phr, formula cost is greatly reduced.


6.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product


7.Lower power consumption,it can save 25-30% electrical power consumption comparing with most  kind PVC ceiling production line.


8.With online hot stamping, easy operation, saving labour.



Parameters of Pvc Ceiling Wall Panel Making Machine:


Model

SJSZ48/113

SJSZ55/110

SJSZ65/132

SJSZ55/110

Double out

Product  width

150mm-250mm

250mm-350mm

400mm-600mm

>200mm

Extruder

SJSZ48/113

SJSZ55/110

SJSZ65/132

SJSZ55/110

Capacity per 24h

>800m2

>1200m2

>1600m2

>1600m2


The details of Pvc Ceiling Wall Panel Making Machine:


1. PVC wall panel making machine--extruder

(1) Adopt Siemens motor (effective control the starting current, lower staring power, reduce voltage fluctuation)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


(2) Adopt JC gear box (high efficiency, high bearing capacity, transfer smoothly, compact structure)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line



(3) Adopt twin screw extruder (which use 38CrMoAL material -- high-wearing, high strength, high temperature resistance, corrosion resistance)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


(4) Adopt PID control (temperature fluctuation self adjusting and realize the high automatic level)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line

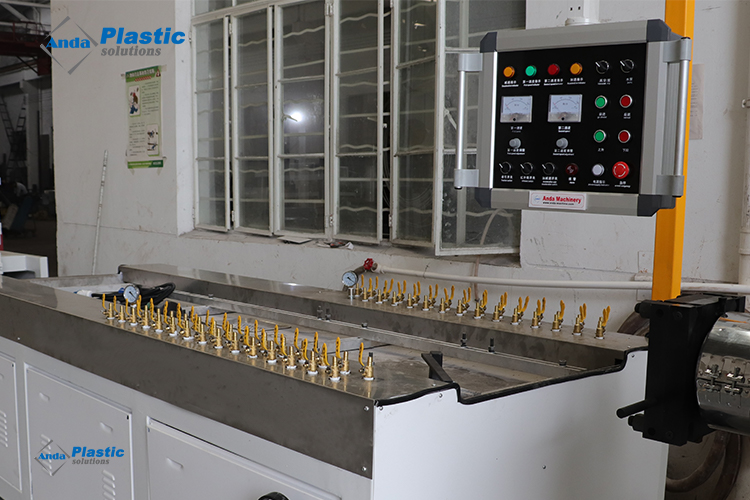

2. pvc wall panel extruder machine--cooling table

Adopt vacuum system to help the PVC products fast finalization and guarantee it is not out of shape.

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line

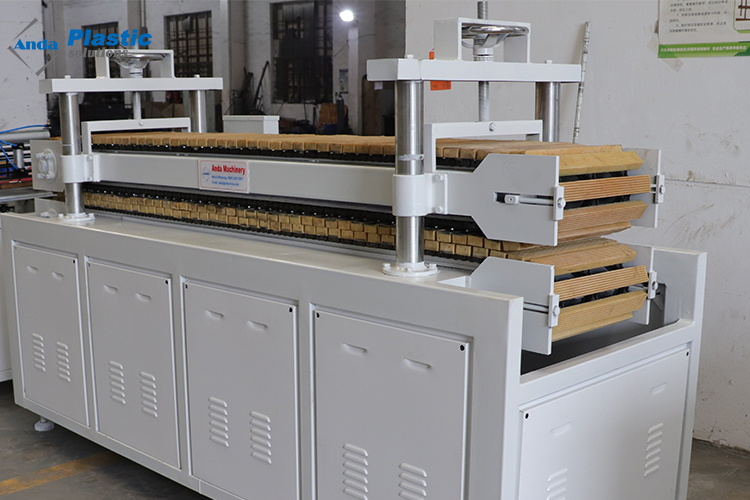

3. pvc panel machine wall panel making--hauling engine

The material of hauling is not too hard which can well protect the transfer of product. It could help the effective traction.

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


4.pvc wall panel production machine--cutting machine

The blade is hard and sharp which has high efficiency and long service time. It also adopt sensing system and easy to cooperate.

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line
